Washing Machine
Labtex
AATCC Washing Machine For Home Laundering Test.

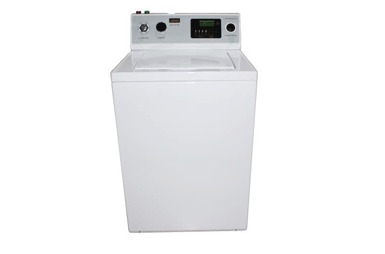

The Labtex LBT-M6 is a commercial grade washing machine and designed to Laboratory use. It meets the latest AATCC Home Laundering Test LP1 (Table I, IIC, IID, IIIA & IIIB) compliant with AATCC TM 88B/C,124,130,135, 143,150,179 & 207.
|
Washing Cycle |
1 For AATCC LP1 - Normal - Permanent Press, - Delicate |
|
2 Rinse & Spin |
|
|
3 Drain & Spin |
|
|
4 Customized |
|
|
Water Control |
25°C~60°C±1°C (wash) Tap water (Rinse) |
|
Washing Load |
10.5KG |
|
Power |
220V/50Hz/1KW OR 120V/60Hz/1.5KW |
|
Packing Size |
700mm x 680mm x 1040mm |
|
Packing Weight |
78KG |
Remark: Washer do not have a heater, so connection a hot and cold water supply is essential.
|
Washing Cycles for AATCC LP1 |
|||
|
Cycle (Table I) |
Normal |
Permanent Press |
Delicate |
|
Water Level Medium |
19±1ga |
19±1gal |
19±1gal |
|
Agitation Speed |
86±2spm |
86±2spm |
27±2spm |
|
Stroke length |
up to 220° |
up to 220° |
up to 220° |
|
Washing Time |
16±1min |
12±1min |
8.5±1min |
|
Final Spin Speed |
660±15rpm |
500±15rpm |
500±15rpm |
|
Final Spin Time |
5±1min |
5±1min |
5±1min |
DESIGN & FEATURES
- Pre-install wash programs with AATCC LP1.

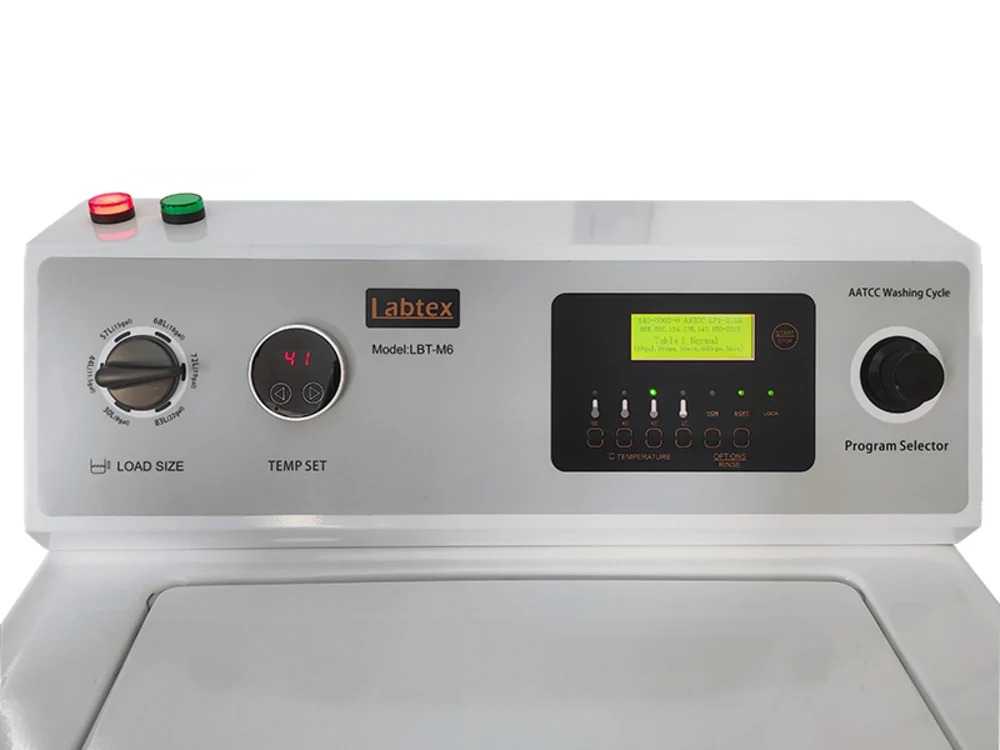

- User Friendly Control Panel.
- Easy adjust and control the water inlet temperature in the tank.
- Door lock control function (Enable/Disable).
- Red/Green Bulb for display the wash program on RUN or END.
- Stainless Steel with Porcelain Coated Basket.
- Water Volume marks on Basket, easy to measure water level.
- Stocke Length (up to 220°), AATCC LP1 latest requirements.
- Industrial Grade Variable Speed Motor & Drain valve.
Labtex LBT-M6Washer accepted as Type-B washer by ISO6330:2021.
|
|
