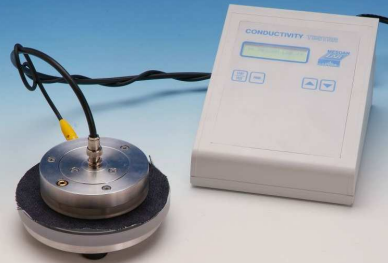

STATIC TESTER
Instrument suitable for checking the static electricity on garment fabrics, protective fabrics, fabrics for shoes and leather. Measuring range 105 _ 1014 Ohm.
Note: the control of the static electricity has to be carried out by conditioning the fabric at 23°C +/- 1° and RH 25% +/- 5% with the Climatest code 1722 or code 1722C.
International standards: UNI EN 1149-1, UNI EN 1149-2, AATCC 76.
|
GENERAL CHARACTERISTICS |
| electronic console for the digital reading of static electricity values, Ohm |
| Probes for both the “surface” and “vertical” modes. |
| connecting cables; |
| Dimension: 500(L) x 300(W) x 300(H) mm. |
| Net weight: 5 kg |
| Power supply: 220 V single-phases - 50hz. |
|
OPTIONAL |
| Calibration Box for Static Lab, code 291.2 |
| Calibrazione report of Calibration Box, code 291.CC2 |
| Climatest, code 1722 |
| Climatest, code 1722C |
