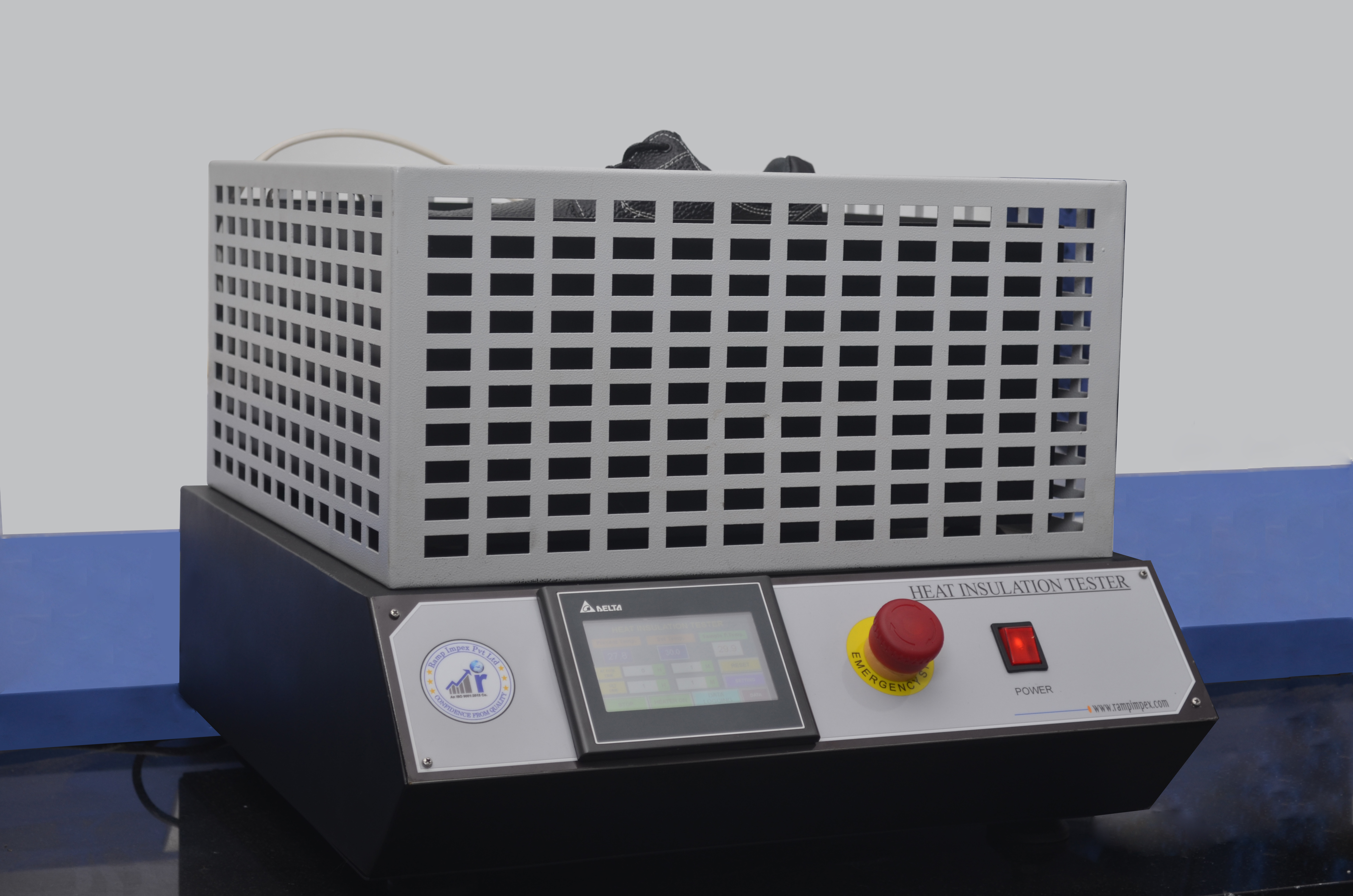

Shoe Heat Insulation Tester
Shoe Heat Insulation Tester is used to test shoe heat insulation / thermal insulation against hot performance.
- ISO 20344 , GB/T 20991, AS/NZS 2210.2

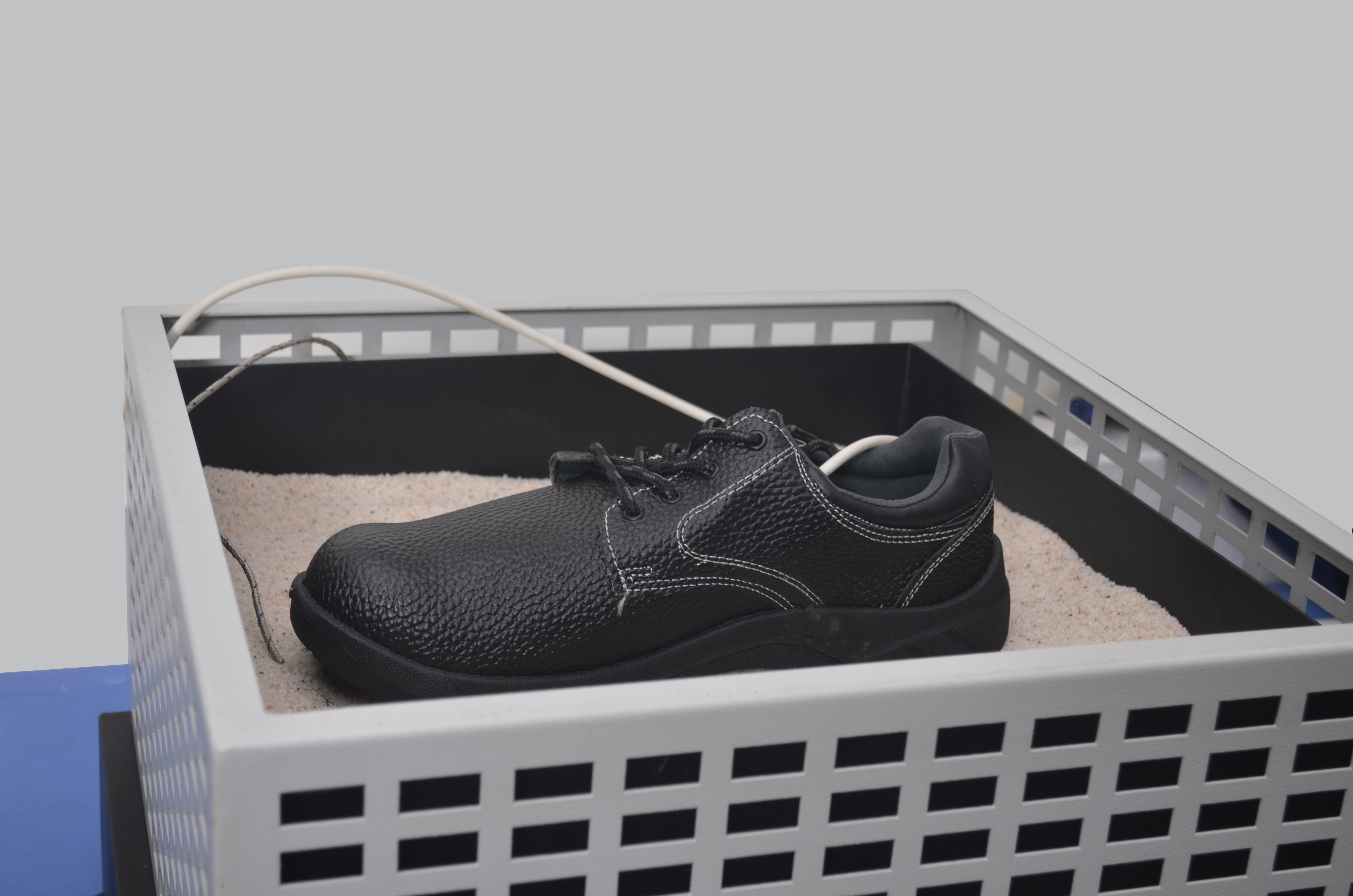

Shoe Heat Insulation Tester – Thermal Insulation Tester is used to test shoe heat insulation / thermal insulation against hot performance. Place the shoe in sandbath and the footwear shall contact with the plate(forepart and the heel) in certain temperature for a given period. Then to measure the temperature increase inside of the shoe. The contact temperature and time is specified in production standard.
| Sandbath Size | (40±2*40±2)cm，Height＞5cm |
| Hot Plate Temperature Range | RT~250°C（Accuracy ±5C） |
| Temp Sensor inside Shoe | Soldered on a thick (2 ± 0.1 mm) diameter (15 ± 1 mm) copper plate |
| Stainless steel balls | Diameter 5mm, 4kg |
| Power | 1∮, AC220V |
| Standard | ISO 20344 section 5.12，GB/T 20991 section 5.12，AS/NZS 2210.2 section 5.12 |
| Accessories | Stainless steel balls (4kg)
Temperature Recorder 1set |
