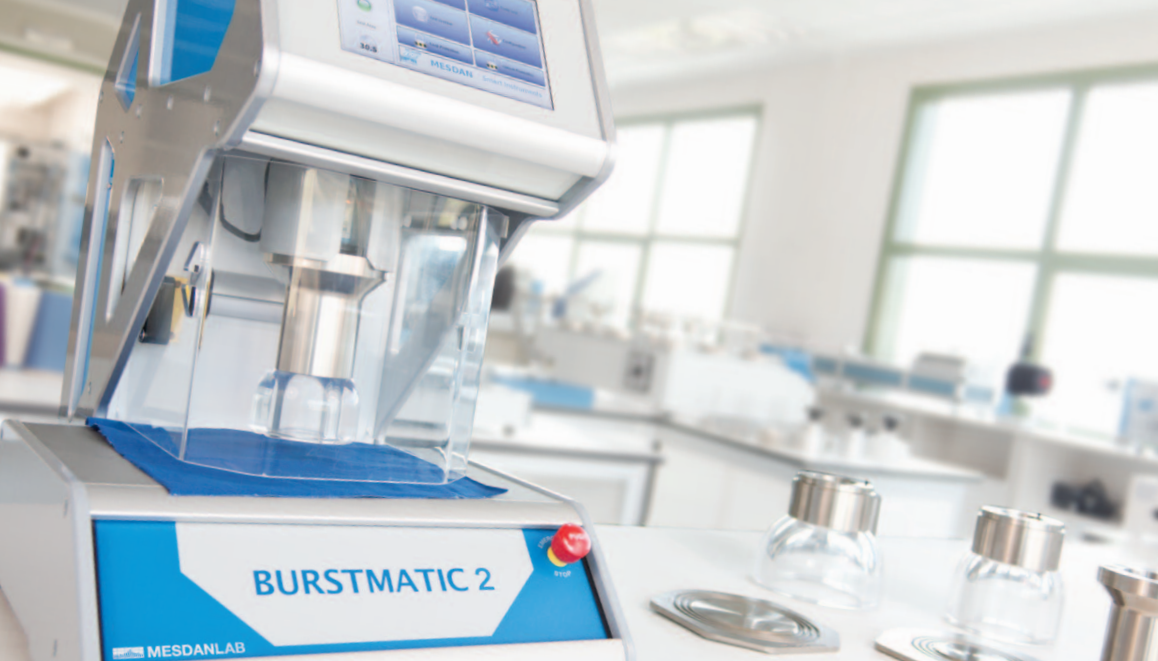

PNEUMATIC BURSTING STRENGTH TESTER
Pneumatic bursting strength tester to determine the bursting resistance and the dynamic fatigue of woven and knitted fabrics as well as technical textiles, non-wovens, leather (artificial and natural), and of other non-textile applications (like paper, plastic, packagings, medical, etc.).
Reference Standards: UNI EN ISO 13938-2, ASTM D3786, M&S P27, Woolmark TM29, NEXT 22, ADIDAS 4.09, GB/T 7742, FZ/T 01030, FZ/T 60019, JIS L1018.
Equipped with: ·
pressure rate auto-check system (no need for calibration foils);
extension height verification system (the use of Johansson gauge blocks is suggested);
a dedicated air inlet for pressure gauge connection (when calibration is needed).
BURSTMATIC 2 automatically generates test reports with results and graphs in PDF format, in the selected language. Test reports can also be easily downloaded on a flash memory or through an FTP connection.
All test parameters, statistic results and graphs, as well as the real-time dynamic behaviour of the tested fabric during bursting or cycle tests, are displayed on the touchscreen.
Compared to the previous version, this new screen is capacitive and with a higher resolution, for a better visualization and touch sensitivity.
Distension measurement range
| mm | inches | cm | |
| Min | 0.1 | 0.004 | 0.01 |
| Max | 70 | 2.756 | 7 |
| Resolution | 0.1 | 0.004 | 0.01 |
Pressure measurement range
| bar | kPa | psi | |
| Max | 10 | 1000 | 145 |
| Resolution | 0.001 | 0.1 | 0.02 |
GENERAL CHARACTERISTICS
- Pneumatic instrument.
- Pressure range 0 – 10 bar.
- Pressure measurement precision 0.001 bar.
- Distension range 0 – 70 mm.
- Distension measurement accuracy 0.1 mm.
- Distension measurement by laser.
- Compressed air filter set, code 338E.400.
- Reinforced rubber diaphragm, 1,5/2 mm thick, set of 10 pcs, code 338E.142.
DIMENSIONS / POWER SUPPLY
- Net weight: 50 kg
- Dimensions: 370 (L) x 460 (W) x 530 (H) mm
- Power supply: 115 Vac or 230 Vac, 50/60 Hz, single-phase.
