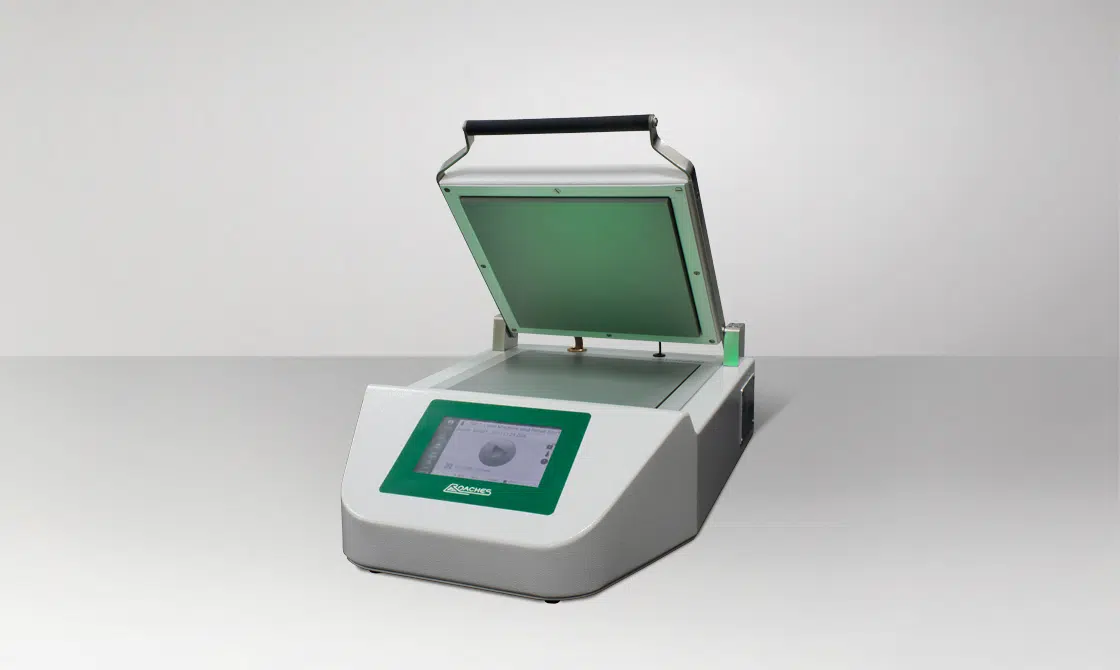

OPTI-THERM
The OPTI-THERM unit has been developed to allow a wide range of tests to be carried out, where accurately controlled dry heat conditions are required on the surfaces of two flat heater plates.
Independent control of the top and bottom plate utilizing the Orbis touchscreen controller ensures accurate plate temperature is achieved. The ergonomic and compact design of the OPTI-THERM provides an ideal user experience and reduced work space.
STANDARDS
EN ISO :EN ISO 105-X11,EN ISO 105-P01.
M&S :M&S P10, M&S C13.
AATCC :AATCC 117, AATCC 133.
JIS :JIS L 0850, JIS L 0879.
OTHER :Adidas 5.09, GB 6152 - Colour Fastness to Hot Pressing.
RANGE OF TESTS
- Sublimation Testing of Dyestuffs on Textiles.
- Transfer Printing onto Textiles.
- Fabric Stability Testing.
FUNCTION
- Temperature range up to 240°C (464°F) with accuracy of ±2°C (3.6°F).

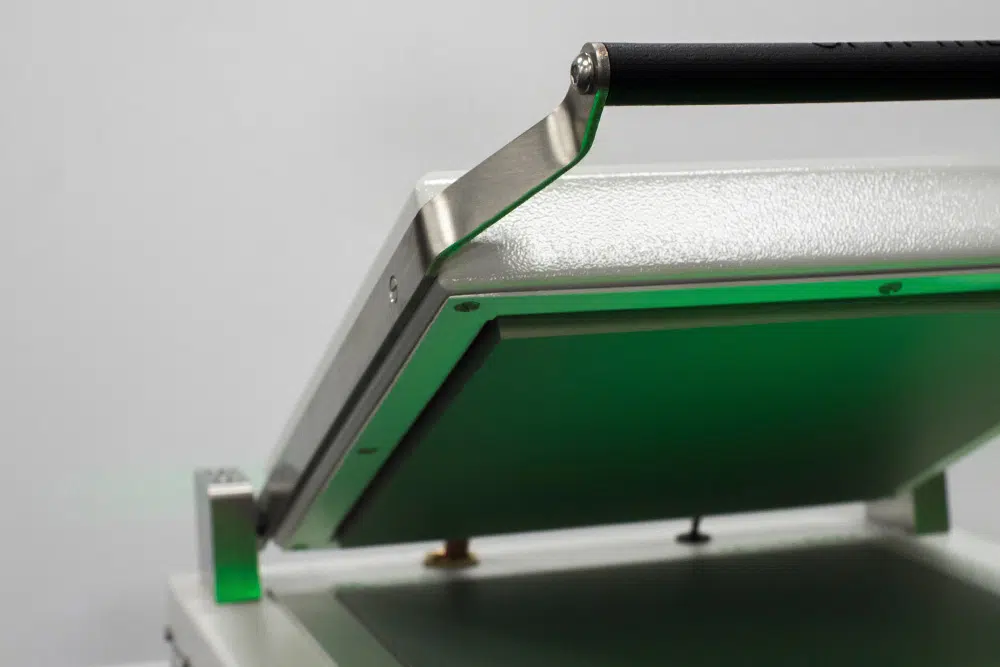

- Constant and even downforce of 4 kPA ±1kPa applied by the top plate.

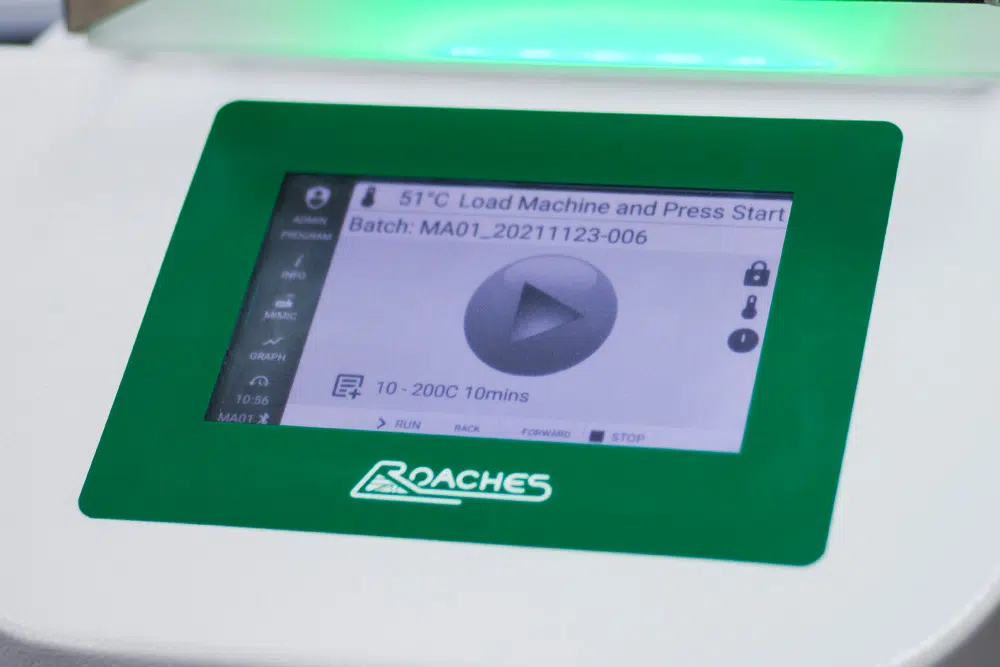

- Roaches Orbis touchscreen controller with Wi-Fi® and Bluetooth® connectivity.
- Preset function allowing multiple time and temperature settings.
- Countdown timer with alarm, activated when top plate is closed.
- Individual temperature control for each plate.
- Indicative LED lights related to plate temperatures.
TECHNICAL SPECIFICATIONS
|
DIMENSIONS |
|
|
WIDTH |
320mm |
|
DEPTH: |
500mm |
|
HEIGHT (LID CLOSED) |
160mm |
|
HEIGHT (LID OPEN): |
420mm |
|
UNIT WEIGHT: |
14kg |
|
ELECTRICAL |
|
|
VOLTAGE |
110V or 230V |
|
FREQUENCY |
50/60Hz |
|
PHASES |
Single (One) |
