OPTI-PILL
Accurate determination of surface fuzzing, snagging and pilling test methods.
STANDARDS
BS & ISO :BS 5811, BS 8479 (Snag),ISO 12945-1
M&S :M&S P18A, M&S P18B, M&S P18C, M&S P21A
WOOLMARK :TM152
SAFETY COVER AVAILABLE ON REQUEST

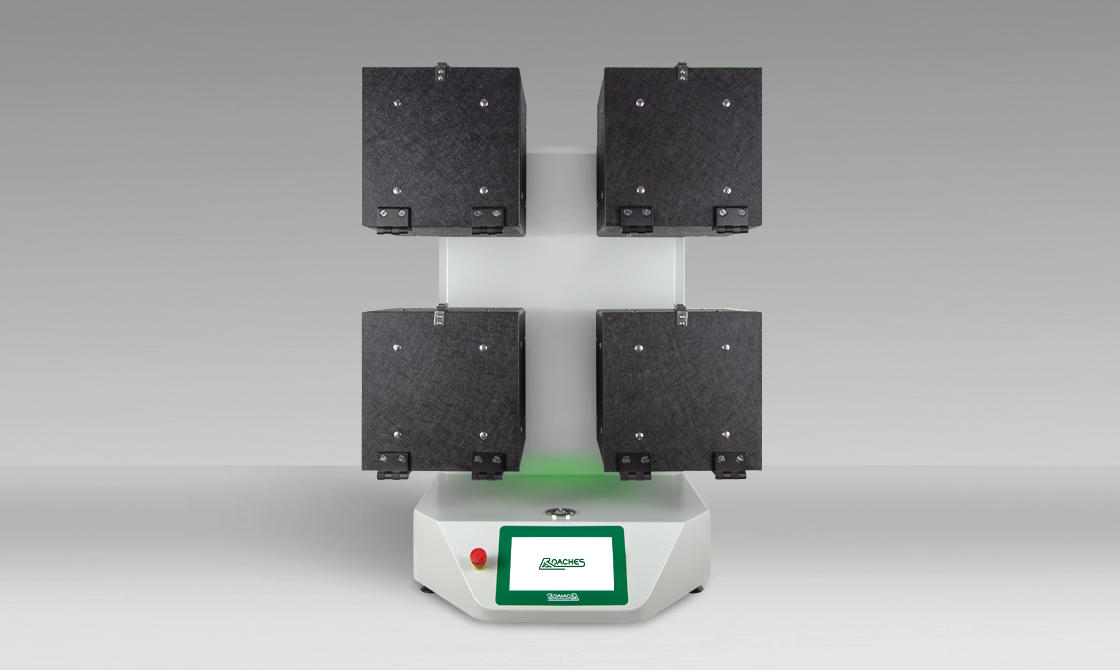

FORM Unique design with front facing boxes allows for convenient access to load and retrieve samples.
FUNCTION

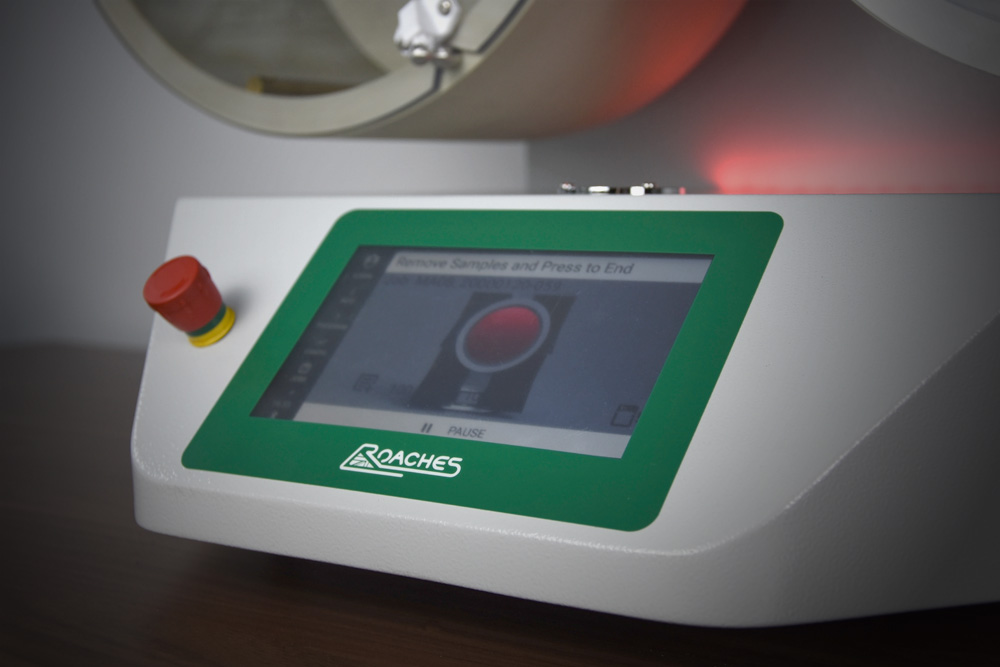

- Intuitive Roaches Orbis touchscreen controller with standard presets.
- Optional extra interlocked safety cover protects the operator whilst in operation.
- The silent drive produces controlled and smooth operation at 60rpm and 30rpm.
- Twist and pull attachment for easy removal of the boxes when changing test methods.
TECHNICAL SPECIFICATIONS

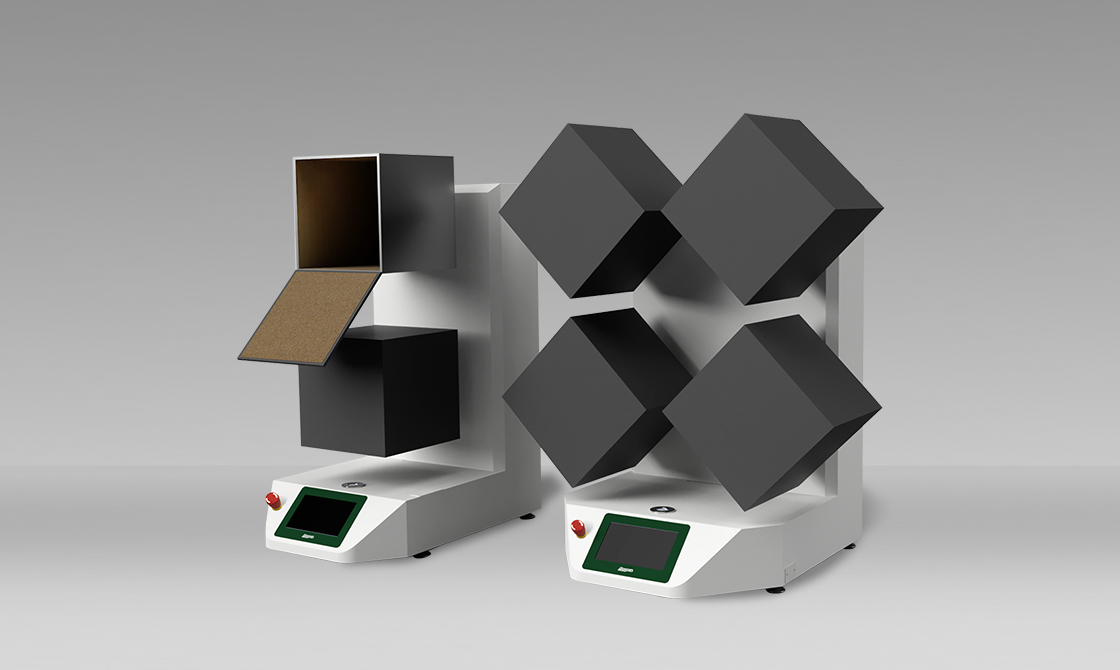

| Number of Positions | 2 or 4 Positions |
| Speed (RPM) | 60, 30 & 30-Reverse |
|
ELECTRICAL |
|
| Voltage | 110V or 230V |
| Frequency | 50-60HZ |
| Wattage | 60W |
|
DIMENSIONS & WEIGHT |
|
| 2 Box Model | 400mm x 590mm x 930mm - 30kg |
| 4 Box Model | 690mm x 590mm x 930mm - 37kg |
|
ORDER CODES |
|
| ICI Pilling Box | 8-ICIBOX/M/B |
| ICI Snagging Box | 8-ICISNAG/M/B |
| M&S Pilling Drum | 8-M&SDRUM/M/B |
| M&S Snagging Drum | 8-M&SSNAG/M/B |
| BS8479 Snagging Drum | 8-OCTSNAG/M/A |
| ICI/M&S Accessories | 8-OPTIPILL/ACC/A |

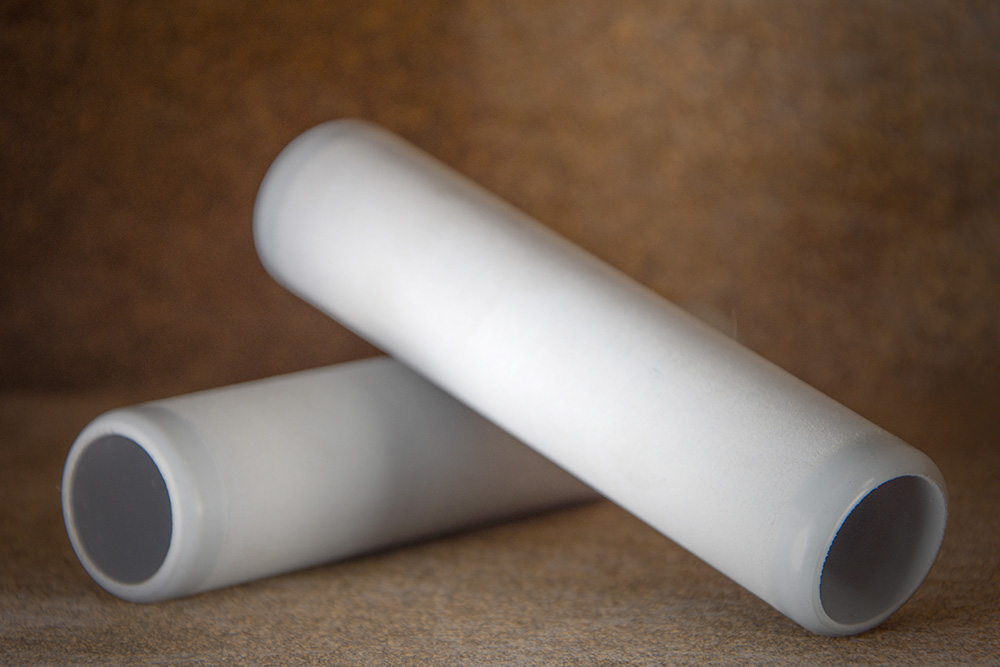

| ICI Pilling Tubes | 2000-0103 |
| M&S Pilling Tubes | 2000-0246 |
| BS8479 Snagging Tubes | 2000-0804 |
