MARTINDALE

MARTINDALE

Martindale is globally recognised as a definitive apparatus for determining the propensity of a substrate for pilling and the determination of resistance to abrasion.

Abrasion Tests

Arcadia AG32 Arcadia AG34 Arcadia AG35 AS 2001 ASTM D4966 BS 2543 BS 3424-24 BS 5690:1976 BS 5690:1988 BS 5690:1991 BS 8428 EN 13520 EN 14325 EN 14465 EN 14605 EN 343 EN 388 EN 530 EN 943-2 EN ISO 12947 EN 12673 EN 17704 EN 5470-2 M&S P19 NEXT 18 Series.

Modified Abrasion Tests

Arcadia AG33 Arcadia AG61 Arcadia AG75 EN 13770 EN 15973 EN 16094 EN 14605 ISO 17076-2 ISO 26082-1.

Pilling Tests

Arcadia AG26 ASTM D4970 EN ISO 12945-2 M&S P17 M&S P18C NEXT TM26 SN 198525 Woolmark TM196.

Other Tests

CEN/TS 16611.

Get a Quote

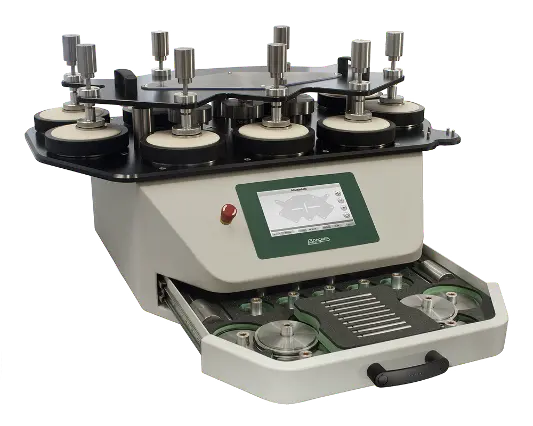

FORM Constructed from only the highest grade materials, Roaches Martindale is a robust unit built for accuracy and reliability. Roaches Martindale is available with 4, 6, 8 and 9 test heads options for maximum versatility. With a simple twisting action the clamping rings easily secure test materials into place.

FUNCTION

Roaches Martindale includes the new touch screen interface. This intuitive technology ensures minimal training for technicians and highly accurate process control. Simple programming for new test methods.

  • Programming options are simple and easy to input.
  • Individual recording of test revolutions for each test head.
  • Abrasion, pilling and sock abrasion accessories are available.

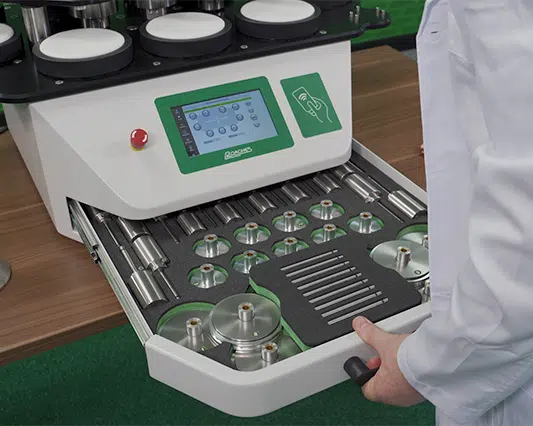

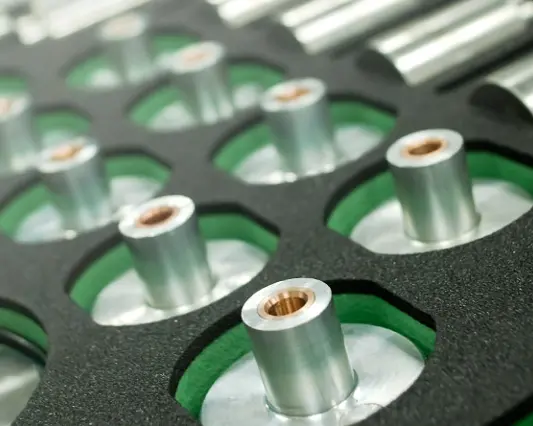

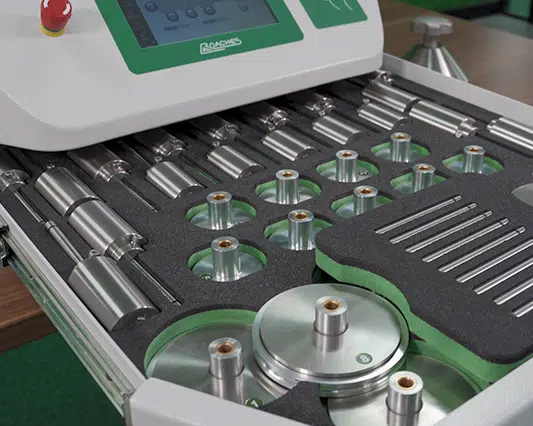

  • Ergonomically designed storage for sample holders and weights.

The perfect choice for organisations practicing lean manufacturing, Six Sigma, 5S or other certifications where traceability and location are key requirements.

DIMENSIONS & WEIGHTS

Model Height (H) * Width (W) Depth (D) Weight **
4 Head 402 mm 625 mm 605 mm 128 kg
6 Head 403 mm 625 mm 606 mm 135 kg
8 Head 404 mm 820 mm 607 mm 156 kg
9 Head 405 mm 821 mm 608 mm 160 kg



SPECIFICATIONS

Voltage Frequency Phases Amp Wattage Air Supply Water Supply
90V to 250V 50/60Hz One (1) 0.5A 60W N/A Not Required
