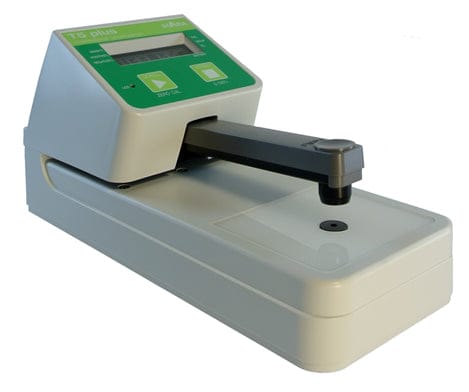

IHARA TRANSMISSION DENSITOMETER
- Compact & High Performance (0.00D-6.0D).
- Supports measurement of Density Positive Dot Area% Negative Dot Area%. Transmittance.
- Easy operation.
- Accuracy check is possible with confirmation film.
SPECIFICATION
|
Dimension |
251mm(D) * 103mm(W) * 125mm(H) |
|
Light Table |
80mm(W) * 70mm(D) |
|
Measuring Arm Length |
185mm |
|
Weight |
1.2kg Approximately 1,200g |
|
Power Source |
AC 9V-500mA, 4.8V, AC adapter 9V-500mA, Built-in Rechargeable Battery 4.8V |
|
Aperture |
3mm, 2mm, 1mm |
|
Measuring Range |
0.00D~6.0D, 100% 0.0001%, %0.0~100.0% Density 0.00D~6.0D, Transmittance 100% 0.0001%, Dot Percentage 0.0 100.0% |
|
Repeatability |
±0.01D (at < 4D, 3mm) ±0.01D at < 4D 3mm aperture) |
|
Fringe correction |
Supported |
|
Power ON/Off |
Power on with ant key operation, Auto power Off function |
|
Optical System |
ANSI PH2.19(Specular-Diffuse) |
|
Filter characteristics |
Visual |
|
Light Source |
Halogen Lamp |
|
Detector |
Filter, Built-in Photo Diode |
|
Interface |
RS-232C (9,600bps,- 8bits, 1bit) RS-232C(9,600bps, 8 Data bits, Non-Parity, bit) |
|
Warm Up Time |
None |
|
Accuracy |
±0.02D at < 4D, Phi * 3mm) ±0.02D at < 4D $3mm aperture) |
|
Display |
LCD 8 X 8 characters LCD |
|
Operating Temperature Range |
5~40°C |
|
Standard accessories |
Aperture $3mm, 2mm, 1mm, Calibration film, Confirmation film, AC 100V Adapter, Instruction Manual |
|
Calibration |
One touch zeroing operation, Slope (2 points) calibration using air and calibration film, It is possible to check the need for calibration with confirmation film |
FEATURES
- High performance and easy operability -

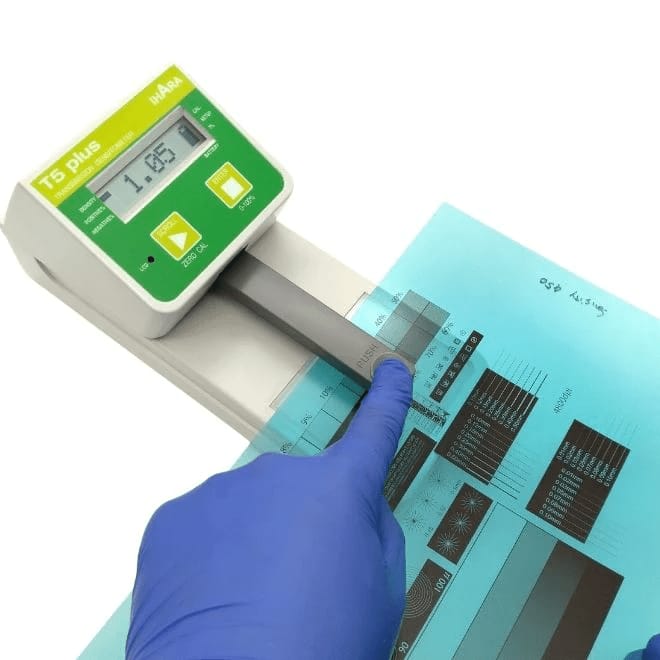

- Small portable and high performance,the measurement is possible just to push down an arm.
- Measurement of A3 size film -T5 plus is possible to measure up to the center part of A3 + size film.
- Connectable to PC etc. Since the main body has an RS-232C output terminal, it is possible to transfer data with one cable.
