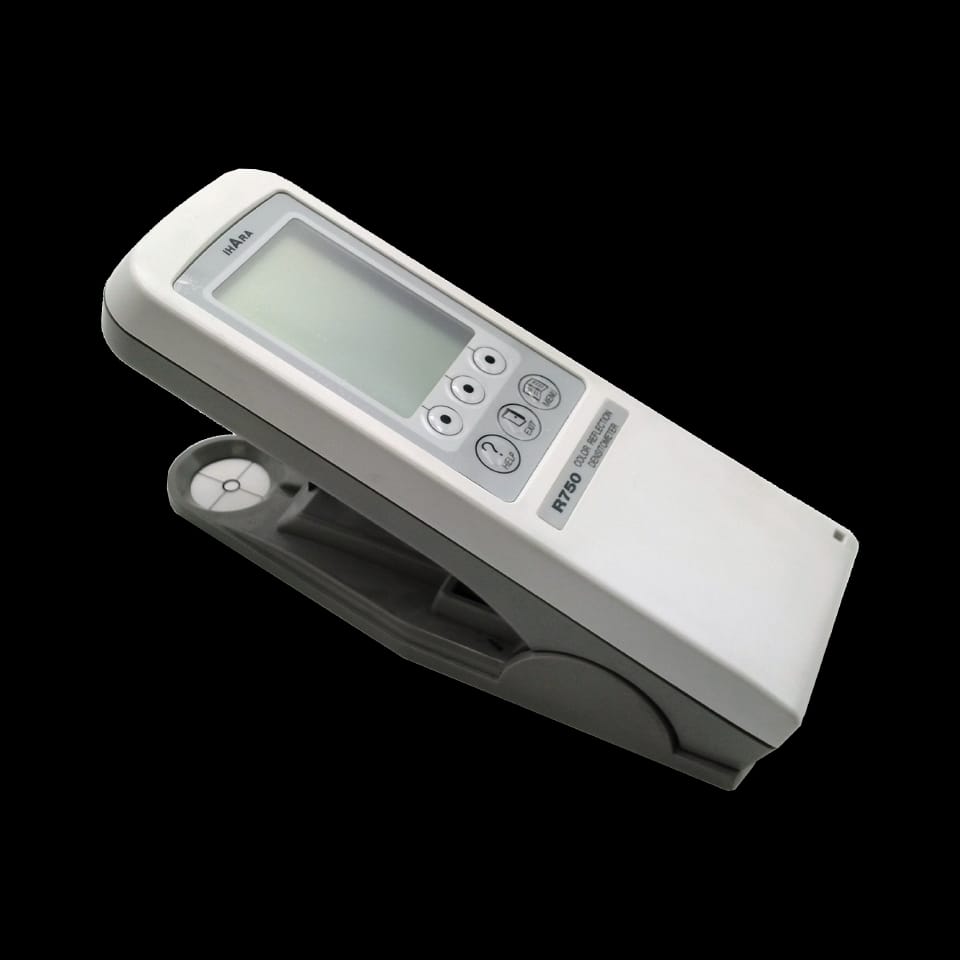

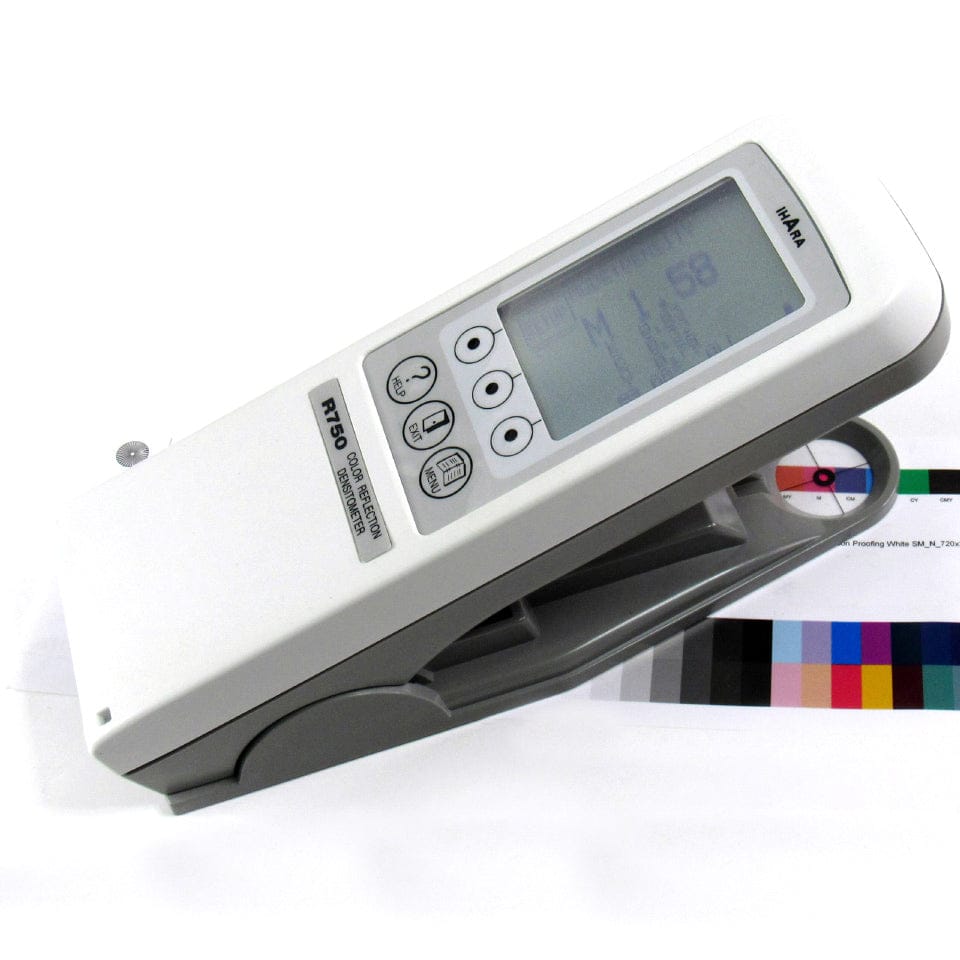

IHARA COLOR REFLECTION DENSITOMETER
High Performance & Reliability
Ihara Electronic Industries utilizes advanced microcomputer technology to ensure superior performance and reliability for its entire line of densito- metric products. Standard functions include: density, density difference, dot area, dot gain, trap, print contrast, hue error, grayness, saturation, cast, brightness, and auto-function and dot analysis.
Specifications
Measuring Geometry: 0°/45° (ANSI PH2.17, ISO 5/4, DIN 16536)
Filter Response Status: Status T, Status E, Status A
Repeatability: ±0.01D
Measuring Range: Density 0.00D - 2.50D
Accuracy: ±0.02D
Light Source: Halogen Lamp, approx. 2856°K
Aperture Diameter: 3.0mm (1.7mm optional)
Detector: GaAsP Photodiode
Display: 128 x 64 Dot Graphic LCD
Power Supply: Ni-Cad (4.8V), 800mAh
Recharge Time: Approximately 1.5 hours
Measurements per Charge: Approximately 4,000 (Internal Testing)
Warm Up Time: None
Measuring Time: Approximately 1 second
Operating Temp. Range: 41°F ~ 104°F (5°C~40°C)
Polarization Filter: (Optional)
Security User Code: (Optional)
Dimensions: 2 3/4" W x 2" H x 8 1/4" L (72mm x 50mm x 210mm)
Weight: 1.2 lbs. (with batteries) (530g)
Computer Output: Configurable RS-232C Serial Interface.
|
Menu Driven Commands |
Simply select the functions desired. No memorization or operation manual required. |
|
Self-Guiding Prompts |
Clear and concise instructions are prompted across the large graphic LCD display in every measurement. |
|
Help Key Provides Explanation of Key Functions |
Detailed explanations are available for all measurement functions along with answers to frequently asked questions. |
|
Quick Calibration |
It takes seconds to calibrate using the quick calibration function. Standard calibration is also available. |
|
Auto-Function |
Auto- function allows the user to measure density, dot gain and ink trap, interchangeably. |
|
Large Graphic Lcd Display |
The easy-to-read graphic LCD display allows the user to determine the precise configuration desired, including right or left-handed view, two or three decimal precision and display options. |
|
Printer and Computer Interface |
The configurable RS-232C serial interface is capable of linking the R750 to any PC. |
|
Security User Code (Optional) |
As an option to safeguard your investment, the R750 may be set to operate only with the correct user code.. |
