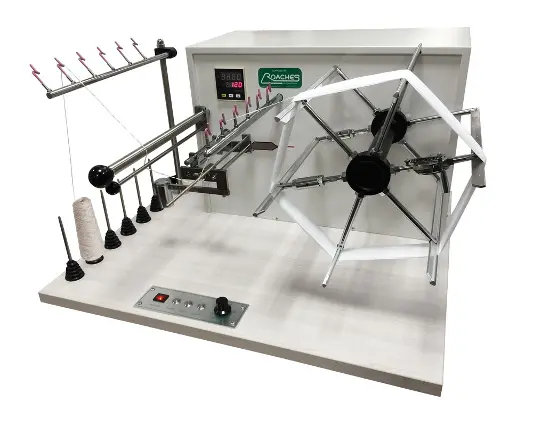

ELECTRONIC WRAP REEL
A high-quality yarn wrap reel, providing consistency and stability to ISO 2060.2
Our Electronic Wrap Reel is designed to produce skeins of yarn of a predetermined length and number of turns for count and / or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.
Unit Features
- Use MCU to control unit, allowing numeric programming parameters (such as speed, bobbin number, reel presenting parameters are pre-settable) and auto-tracking the speed of the reel.
- Precision DC speed regulating motor with synchromesh belt allows for precise positioning.
- Numeric speed controlling panel makes the unit consistent and stable.
- Two start-up modes (hard start-up and soft start-up) make the unit work consistently and stably and do not break yarn when starting.
- Electronic limit trips, total rev number and user programmable stops.
- Closed-loop controlled and speed tracking system. Esures that an even speed is kept even with variable voltage.
Key Specifications
| Reel circumference | 1000mm / 54” |
| Rev | 25-300 PRM (pre-settable) |
| Spindle interva | 65cm |
| Number of wraps | 2 - 9999 (pre-settable) |
| Programmable stops | 1 - 9 (pre-settable) |
| Travaling reciprocating distance | 35mm ± 1mm |
| Reeling pre-tension | 0 - 100cN (pre-settable) |
| Size | 780 x 660 x 480mm |
| Weight | 50kg |
