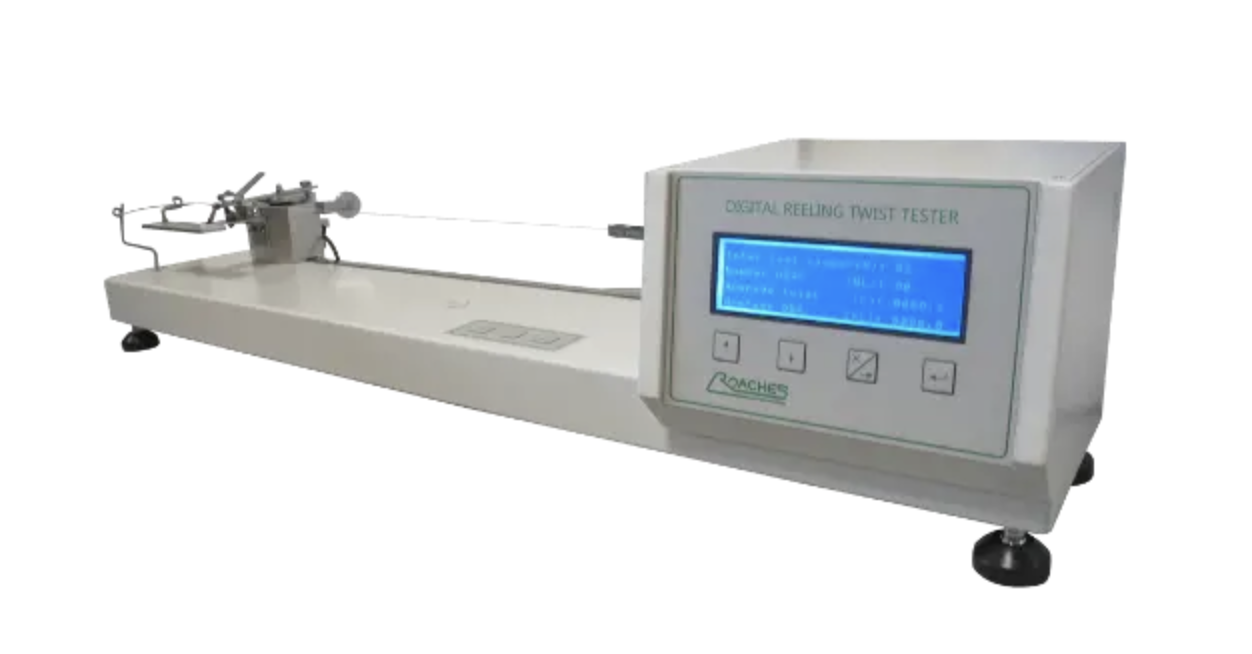

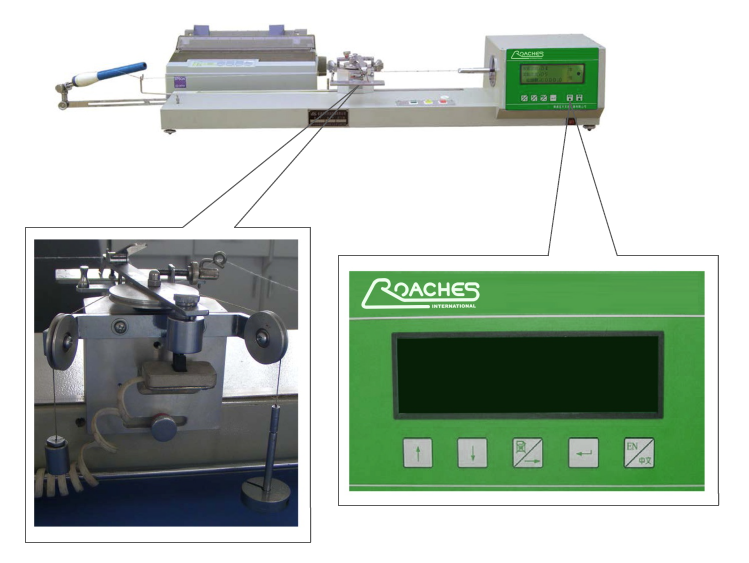

Digital Yarn Twist Tester
Application
Digital Reeling Twist Tester is designed to determine single or plied yarns twist by conventional or untwist/retwist methods.
This tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
STANDARDS GB/T2543.1/2, 14345 ISO 2061 FZ/T 10001 ASTM D1422/1423.
Key Specifications
• Test methods;
- Direct count
- Once twist/re-twist method
- Twice twist/retwist method
- Triple twist/retwist method
• Sample length 25, 50, 100, 250, 500(mm) - (selectable)
• Range of tested yarn 1~499.9tex
• Range of test 1~9999.9 twist
• Rotational speed 300~1200r/min (adjustable)
• Metallic scale accuracy 1mm
• Power supply AC220V 50Hz 20W
• Instrument size 1070×240×200mm
• Instrument weight 30kg
Standard Configuration
|
No. |
Item |
Quantity |
|
1 |
Main machine |
1 set |
|
2 |
Left sample gripper |
1 set |
|
3 |
Magnifier |
1 set |
|
4 |
Pre-tension weights |
1 set |
|
5 |
Analysis needle for plied yarn |
1 set |
|
6 |
Fuse |
5 pcs |
Features
• Controlled by microcomputer, large-screen LCD display.
• With data storage function when power off, query up to 300 groups data, and print out test report in English.
• “zero” position is detected by optocouple sensor to avoid “zero” shift caused by Hall sensor.
• Right sample grip is derived high-performance direct-drive stepper motor, rotational speed can be
arbitrary preset to avoid the problems of brush wear and spark interface which is caused by DC motor.
• Can be pre-tensioned in the horizontal direction.
