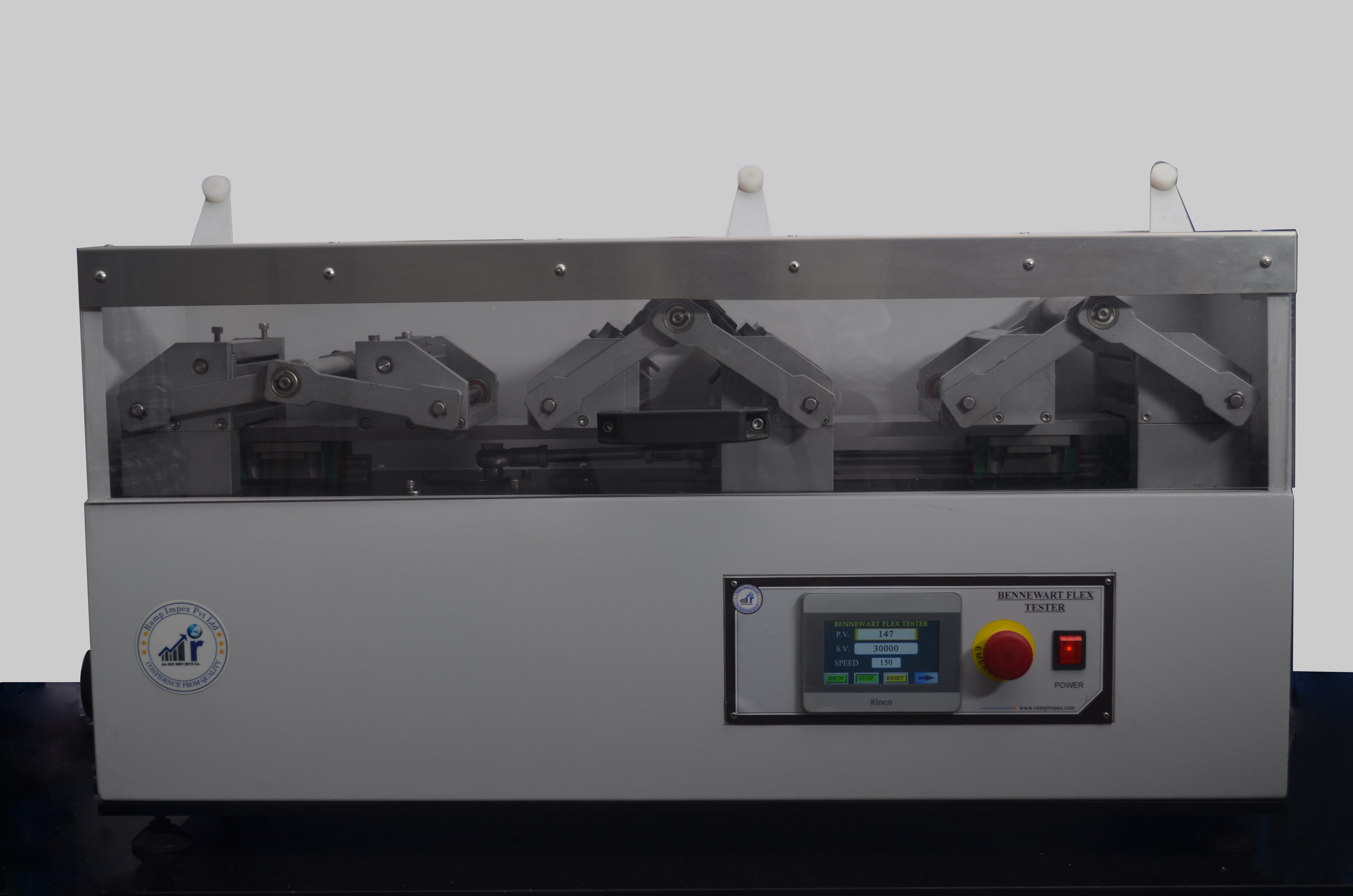

Bennewart Flex Tester
Bennewart Flex Tester is used to test outsole flexing resistance.
- ISO 20344, ISO 17707, DIN 53543 and etc
Bennewart Flex Tester is used to test outsole flexing resistance by flexing the outsole at a certain speed and angle. The shoe outsole flexing method aims to check the effect of sole materials and surface patterns on cut growth. This whole sole flexing tester methods meet ISO 20344, ISO 17707, DIN 53543 and etc.
| Model | RT-BT-03 |
| Test positions | 1, 3, 6 or customized |
| Standard | ISO 17707, DIN 53543, ISO 20344, SATRA TM161,
ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2, QB/T 2885, |
| Clamp spacing | 110 ± 1 mm, width 155 mm |
| Flexing roller diameter | 30 ± 0.1mm |
| Movable clamp moving stroke | 41.5 ± 0.5 mm |
| speed | 135-150 cycles/min |
| Angle | (90±2)° |
| Counter | LCD display 0~99,999,999 can be set |
| Power | 1∮ AC 220V 3A |
