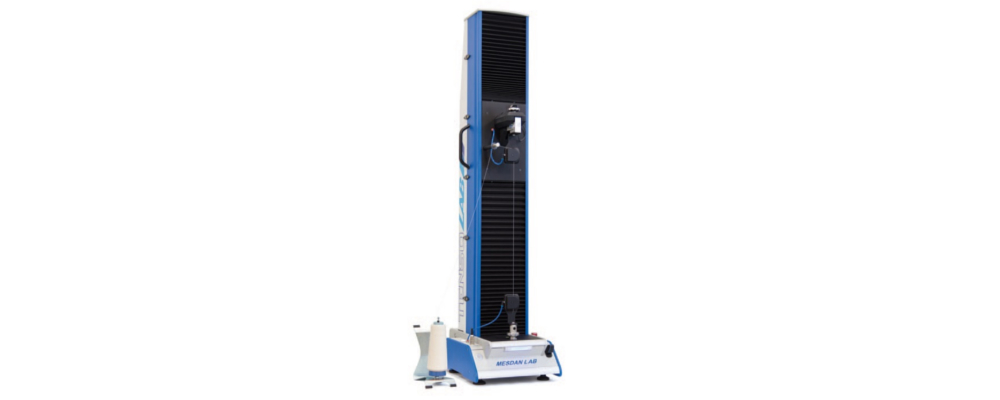

TENSO-LAB 4   SEMI-AUTOMATIC TENSILE STRENGTH TESTER 2512E, 2512F

Tenso-Lab 4 is the latest generation of the well-known Tenso-Lab semi-automatic CRE tensile tester, desgined with a mini incorporated PC. Low speed testing and high resolution of acquired data. The new model is distinguished by: new hardware, new components and new open software, and is also suitable for single fibre and fibre bundle testing.

Single fibre configuration - available accessories:
- 10N load cell (Code 2512E.579)
- Single fibre pneumatic clamps set (pretensioning clips included) (Code 2512E.725)
- Foot switch (Code 2512E.618)
Fibre bundle configuration - available accessories:
- 100N load cell (Code 2512E.581)
- Fibre bundle “Pressley” clamps set (holder and torque vice included) (Code 2512E.720)
- Electronic torsion balance (Code 165.720)

For the full TENSO-LAB 4 description, see YARNS and FABRICS sections.

Reference standards: UNI, UNI EN, UNI EN ISO, ISO, ASTM, M&S, JIS, BS, IWS, NEXT, ...
Officially approved by Marks & Spencer.
ISO 17025 Calibration Certificate (Accredia - ILAC) available on demand.

Optional/ Accessories:

• A wide range of interchangeable load cells.
• A wide range of interchangeable pneumatic and mechanical clamps complying with relevant international standards.
• Foot switch (necessary for pneumatic clamps).
• PC and Printer, or built-in PC (to be defined at order).
• Compressor.
• UPS.

Power supply: 230 Vac, 50/60 Hz, single-phase.
Dimensions: (L) 480 x (W) 370 x (H) 1415 mm.
Weight: 75 kg.
