RAMP-AIR PERMEABILITY TESTER
Air Permeability Tester of textile fabrics complies with ASTM D737, ISO 9237/7231, BS 5636, etc. It is used to test the resistance of the flow of air through fabrics. There is different air permeability test method to do air permeability testing for textiles, Air Permeability Tester To test the air permeability of various woven fabrics, knitted fabrics, non-woven fabrics, Protective Clothing, industrial filter materials etc.
Application Fabric, including garments and industrial fabrics, technical fabrics, woven, nonwoven, paper, rubbers, filters, felts and
other materials permeable to the air.
RELATED STANDAR: ASTM D737, ASTM D3574, BS5636, DIN53887, EN ISO 7231, EN ISO 9237, DIN 53887, EN, ISO 9237, JIS L 1096-A, TAPPI T-251, WSP 70.1.
Units of Measure: mm/s, l/m²/s, l/dm²/min, ft³/ft²/min, cm³/cm²/s, m³/m²/min,m³/m²/h, dm³/s, Pa (pressure drop), mks rayl, cgs rayl (air flowresistance).
Measuring Range: 0.4 – 750 cm³/cm²/s at 5 cm²; 1 – 10,000 mm/s (l/m²/s) at 20 cm²; 0.6 – 6,000 l/dm²/min at 20 cm²; 0.002 – 20 dm³/s at 25 cm²; 0.1 – 1,300 ft³/ft²/min at 38 cm²; 0.05 – 700 cm³/cm²/s at 38 cm²; 0.03 – 400 m³/m²/min at 38 cm²; 2 – 24,000 m³/m²/h at 38 cm²; 0.1 – 1,600 l/dm²/min at 100 cm²; 20 – 2,500 Pa at 1–10,000 mm/s at 20 cm².
- Test Pressure 20 – 2,500 Pa.
- Test Areas 5, 20, 25, 38, 100 cm².
- Pressure drop measurement 0 to 2500 Pa.
- Clamping Arm Projection 50 cm.
- Sample Thickness 0 – 10 mm.
- Touch Interface Touch Display.
- Connectivity Ports RS-232C, USB 2.0.
- HMI based Interface to control instrument and connected PC.
- inbuilt pneumatic system with variable control.

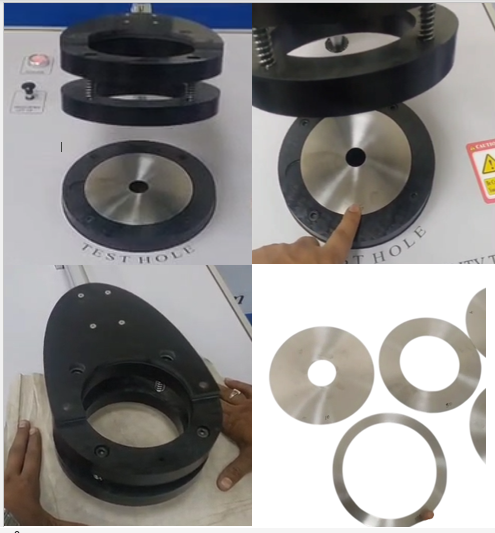

- (Optional) diaphragms of different sizes. The diaphragm of sizes: 4 cm², 5 cm²,10 cm², 38.3 cm².50 cm² and 100 Cm² (+0.30%) are required.
- Readings displayed in cc/cm²/s, L/cm³/min., CFM, L/Mt.²/s.
- Measuring accuracy of the instrument + 2%.
- Noise level <40dB.
FEATURE
- Touch Screen Control as well as operating by connect to the computer.
- Full range and automatic detection.
- Test head size can be automatically sense, and replacement is simple and convenient.
- Variable hole test plate can be automatically cleaned to ensure accuracy.
- Equipped with thermal printer to print the experiment result.
- Microcomputer processing without manual calculation and the test result can displayed directly.
- Testing arm is pneumatic controlled and can press and put up automatically.
- Equipped with 11 nozzles with different calibres to meet different specimens.
- Please open this like and find machine video.
- https://drive.google.com/file/d/1RRhzWzVVOhfbcl9DAdR8OGlx1vDNxsj-/view?usp=drivesdk
Versatile: Designed to meet air permeability standards for
- Paper
- Textiles
- Nonwovens
Provides quick and straightforward results in the unit of measure of your choice.
Easy to Use: Single press clamping/test initiation and single press sample release & Quick change test heads.
Intuitive: Automatic ranging system detects the size of the installed test head and determines the appropriate pressure range. A powerful but quiet vacuum accommodates a variety of test heads.
